Collect. Convert. Upload. — One device that bridges Modbus to OPC UA.
OPC UA is the standard for Industry 4.0. But your existing devices still speak Modbus RTU or Modbus TCP.
Replace everything? Too expensive. Add more converters? Too messy. Write custom code? Too slow.

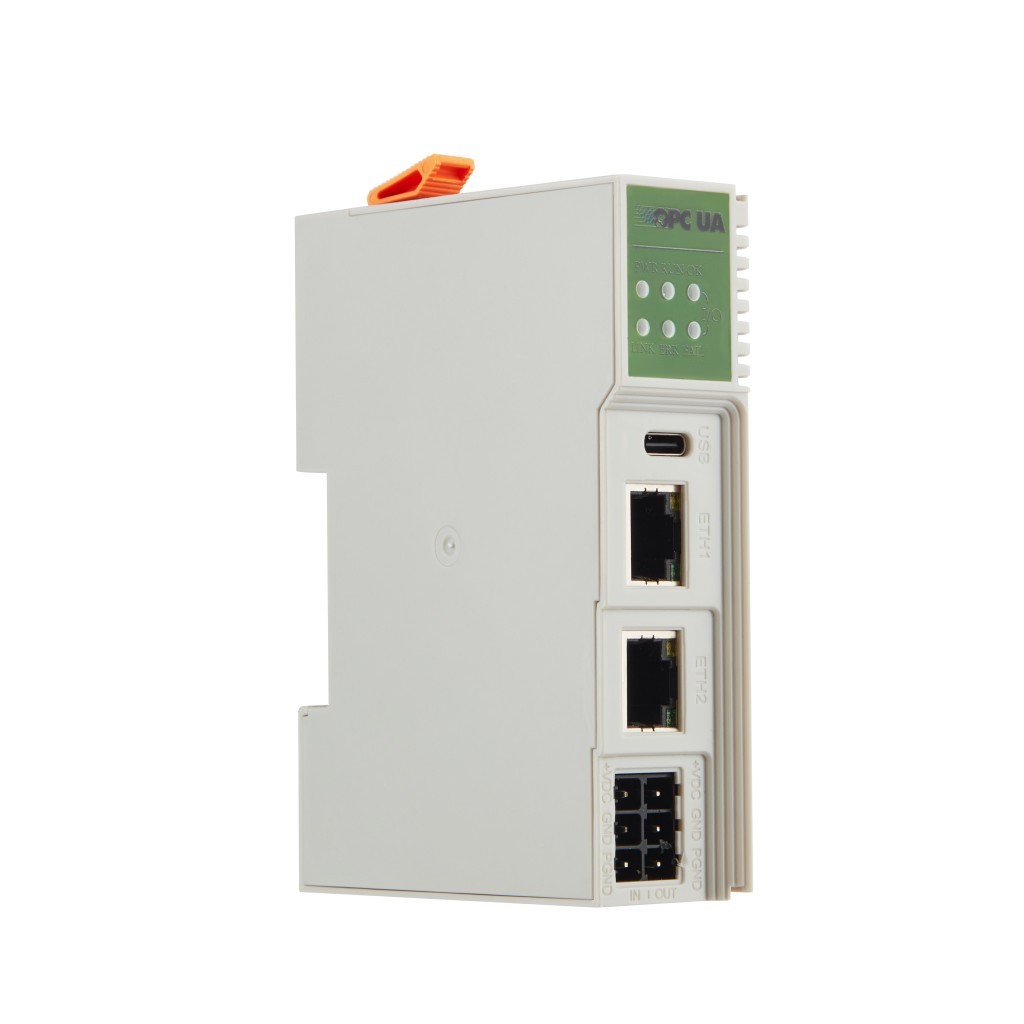

BL211 is the answer. It is a Modbus collector, an OPC UA server, and an expandable distributed I/O system — all in one. Modbus data comes in. OPC UA data goes out. No code required.
From factory to platform. From sensors to MES. From the field to digital twin. BL211 takes your data to the platform in one step.
The BL211 has a built‑in protocol engine: data collected via Modbus RTU or Modbus TCP is automatically mapped to OPC UA nodes. Engineers don't need to learn OPC UA programming or struggle with complex address mapping. Power on, configure once, and data conversion just works.
Traditional SPI‑based solutions fail in noisy environments — lost connections, corrupted data, and constant reboots. The BL211 uses industrial fieldbus design: auto‑reconnect after network loss, automatic data frame correction, fault recovery without rebooting. Your production keeps running. Your service calls drop by half.
👉 VFD interference? Long‑distance RS485? Frequent motor starts and stops? The BL211 is built for these "problem sites".

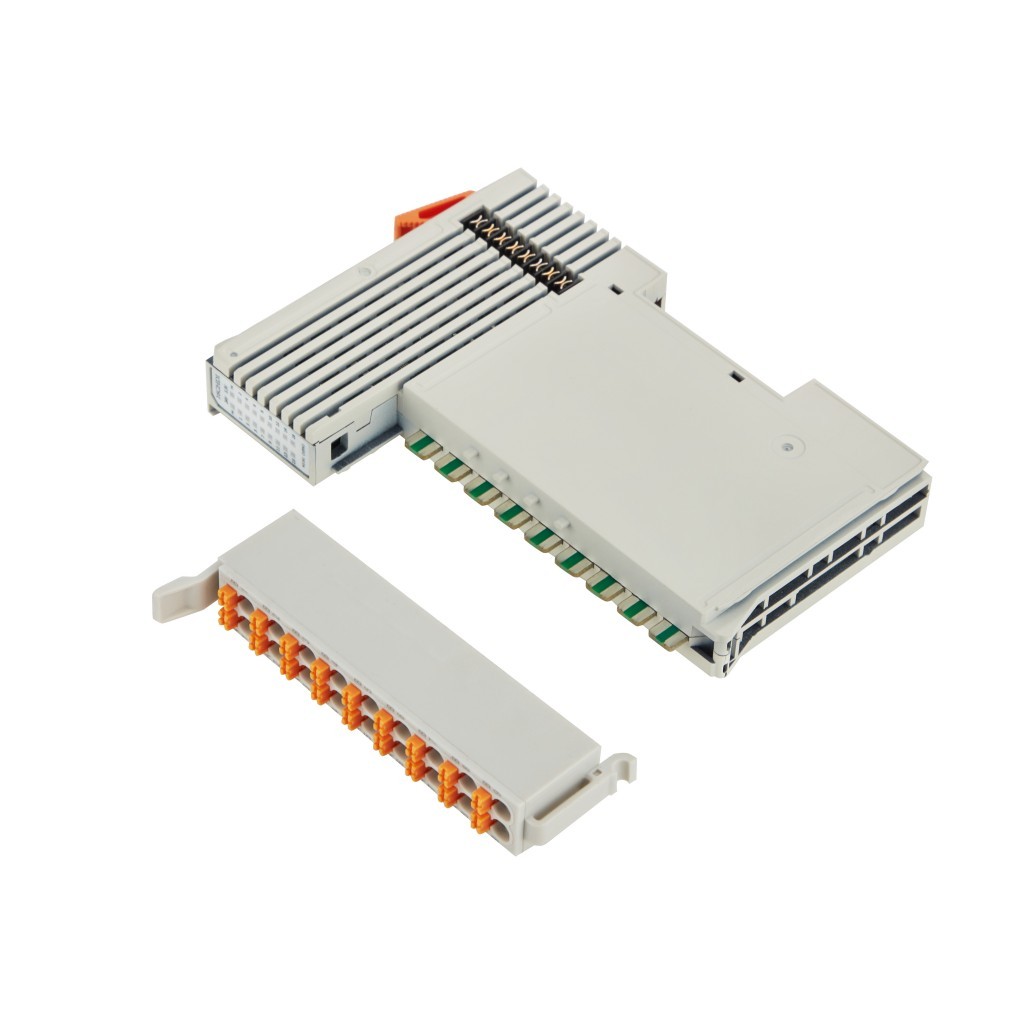

The BL211 works with all N Series I/O modules, supporting:

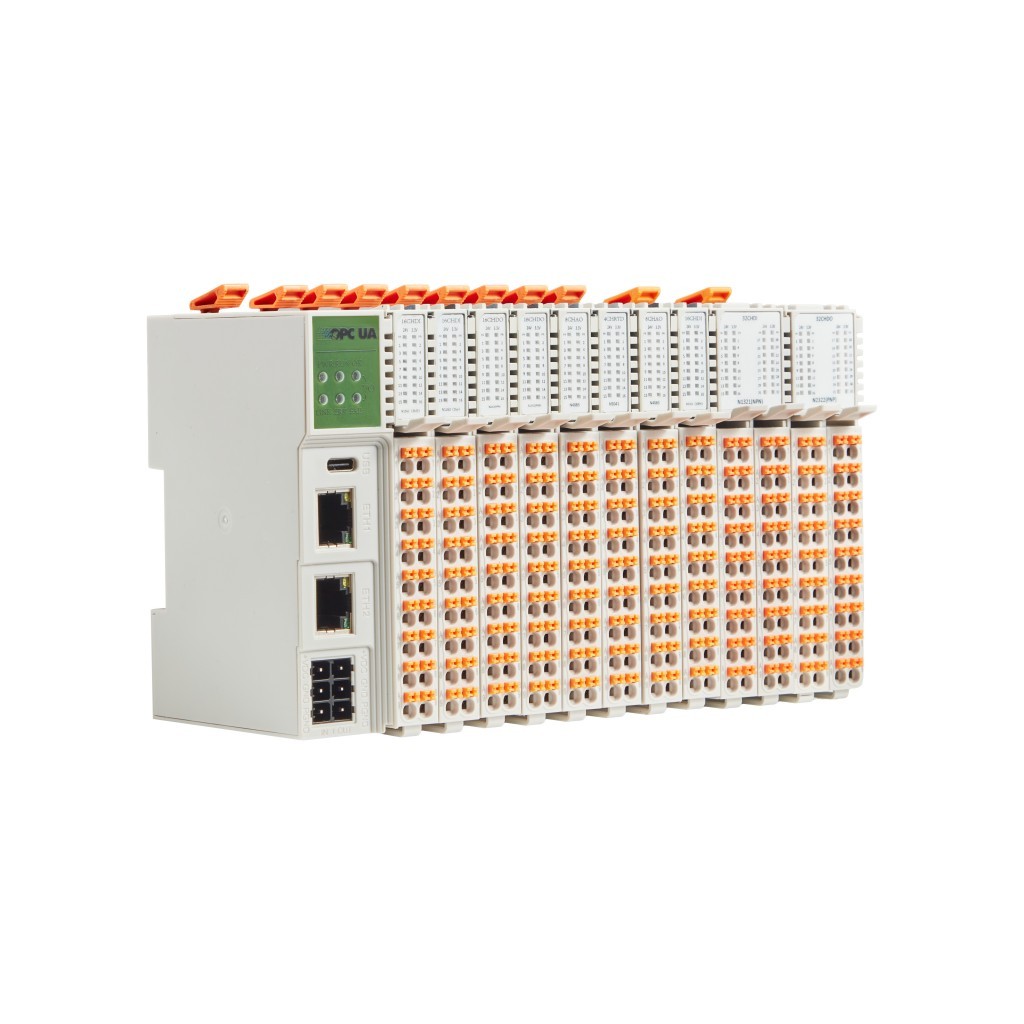

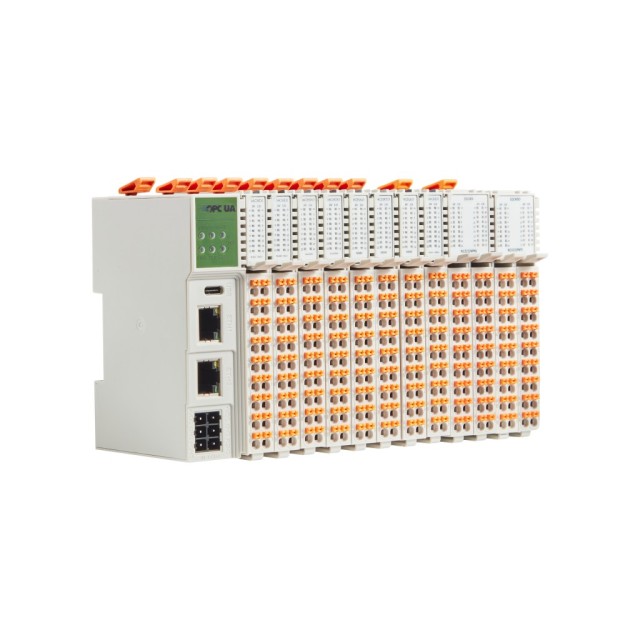

One BL211 + a few N Series modules = a complete distributed I/O and control system.
Two Ethernet ports with built‑in switch support line topology. Daisy‑chain multiple devices without an external switch. Simpler wiring. Lower cost.
Packaging machines, injection molding machines, machine tools, textile machinery — your PLC needs more I/O, and your customers demand OPC UA upload. The BL211 solves both: I/O expansion + Modbus collection + OPC UA output.
Factory upgrades, production line networking, data to platform. Your site has mixed devices and mixed protocols. The BL211 collects all Modbus devices and outputs unified OPC UA. Your SCADA or MES reads one clean source.
Power, solar, energy storage, data centers, HVAC, water treatment — long distances, high interference, frequent dropouts, constant reboots. The BL211's auto‑reconnect, auto‑correction, and reboot‑free operation is made for these remote, unattended sites.
SCADA, MES, IoT platforms, digital twin — you need stable, standard, clean data sources. The BL211 outputs standard OPC UA. No driver development. No Modbus parsing. Just connect and read.
| Traditional SPI‑Based Solution | BL211 + N Series |
|---|---|
| Lost connection and corrupted data in noisy environments | Industrial fieldbus design, strong noise immunity |
| Must run to site to reboot after network loss | Auto‑reconnect, no manual intervention |
| Data frame shift cannot be recovered | Automatic data frame correction, always accurate |
| System must be stopped and rebooted after communication errors | Fault recovery without rebooting, production keeps running |
| Need two devices for Modbus + OPC UA | One device does collection, conversion, and upload |
| Custom coding required for OPC UA mapping | Automatic node mapping, ready out of the box |
Answer: Industrial‑grade RS485 + auto‑reconnect mechanism. Stable even in high‑noise environments. When the network recovers, the connection recovers automatically. No manual intervention. No site visit.
Answer: No. The BL211 automatically recovers from faults and corrects data errors. No production stop. No site visit.
Answer: Automatic data frame correction. If interference causes bit shifts, the system corrects itself. Data stays accurate and stable.
Answer: Yes. Modbus data is automatically converted to OPC UA for upload. One device handles collection, conversion, and upload.
Answer: The BL210 is a dedicated Modbus TCP coupler for pure Modbus TCP environments. The BL211 adds a built‑in OPC UA server — ideal for projects that need to connect to SCADA, MES, cloud platforms, or digital twins. If your data needs to reach a platform, choose BL211.
📋 For complete technical specifications and N Series I/O module selection, please see the Distributed I/O Selection Guide
BL211 = Modbus collection + OPC UA upload + expandable I/O + industrial‑grade stability
Fewer production stops. Fewer site visits. Less code. Lower support costs. Your customers stay happy. You stay profitable.
| Model | BL211 |
| Description | OPC UA + Modbus Coupler, dual RJ45, RS485, expandable with N Series I/O |
