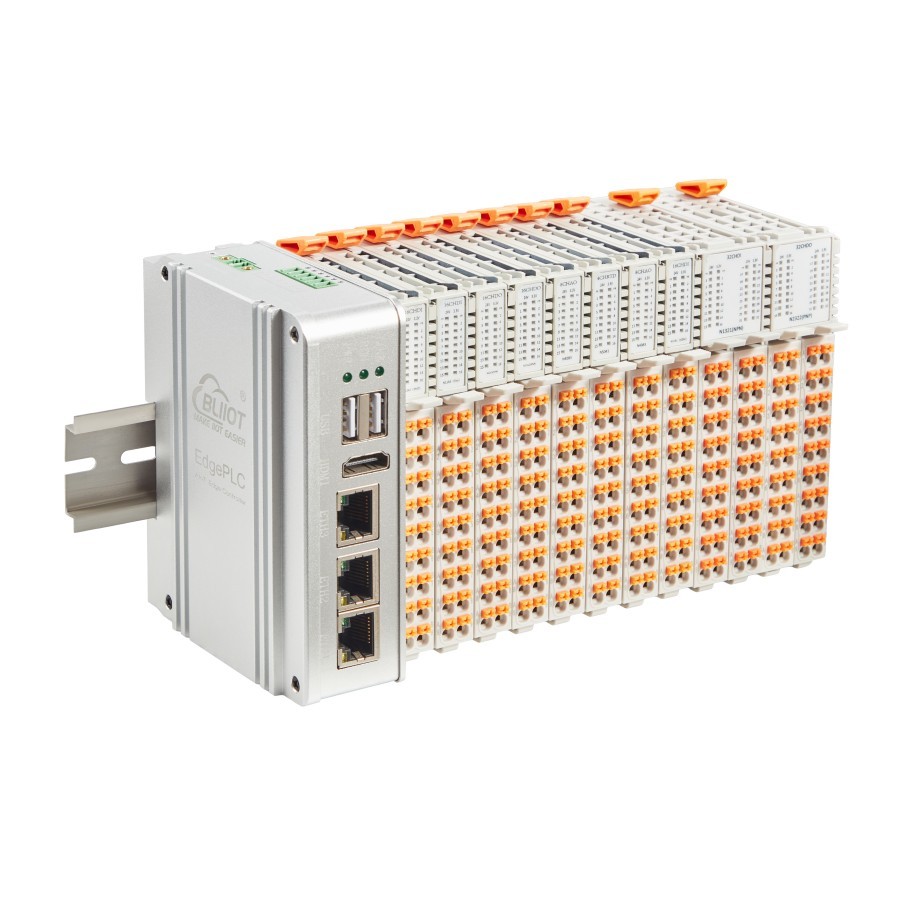

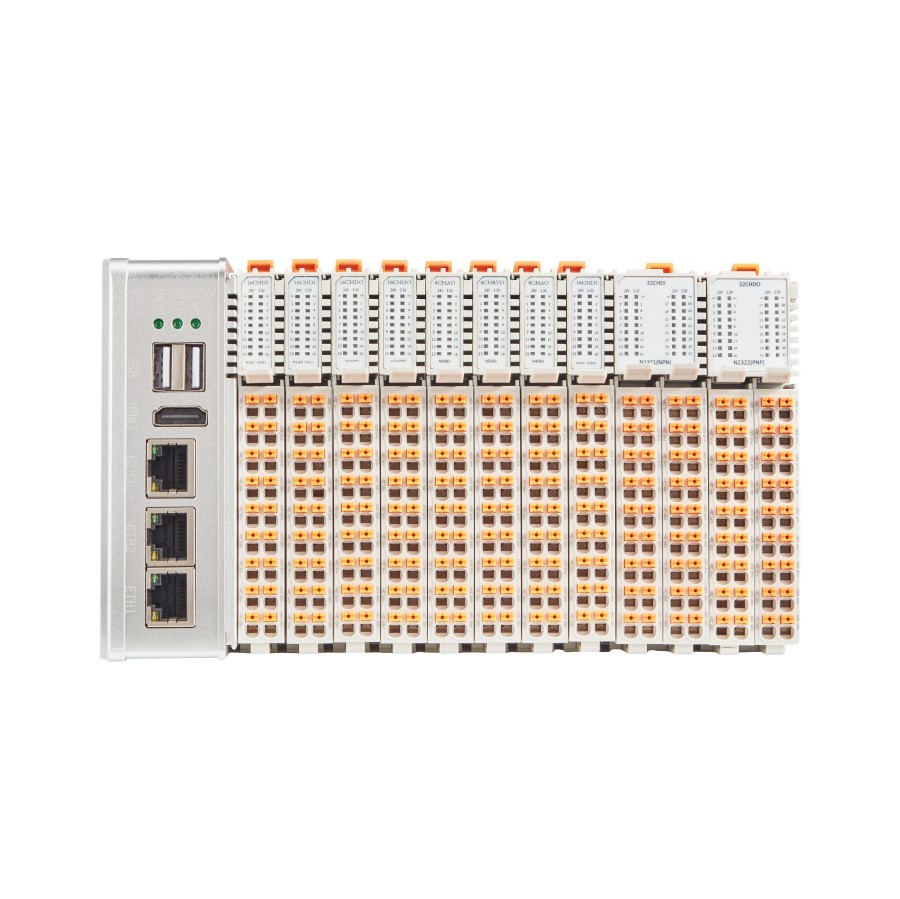

EdgePLC BL233 Series Allwinner T113-i Industrial Edge Gateway

No.BL233 Series
The EdgePLC BL233 is a high‑performance, rugged edge controller powered by the Allwinner T113‑i CPU. it delivers millisecond real‑time & edge compute. It shares the same N‑series I/O, modular slot, and optional 4G as our BL233 series, making it the perfect entry point for industrial automation, EMS/BMS, smart manufacturing.
Processor
Allwinner T113-i
SoC
2xA7
RAM
256/512MB, 1GB
ROM
4/8GB
PLC Software
OpenPLC, NexPLC
Request Pricing

  • Description

  • Model Selection

EdgePLC BL233 Series

Industrial Edge Controller – Real‑time Control & Edge Intelligence

Powered by Allwinner T113-i (dual-core Cortex-A7 @1.2GHz + RISC-V + HiFi4 DSP), supports up to 32 N‑series I/O modules, IGH EtherCAT master, Ubuntu 20.04, Docker, Node‑RED, OpenPLC / NexPLC runtime. Perfect for smart manufacturing, energy storage, and AIoT edge nodes.

Core Features

Real‑time deterministic control with open edge computing

Allwinner T113-i SoC

  • Dual-core ARM Cortex-A7 @1.2GHz + RISC-V C906 + HiFi4 DSP
  • Hardware video codec (H.265 up to 4K@30fps)
  • 4/8GB eMMC, 128M/256M/512M/1GB DDR3 configurable
  • -40°C to +85°C industrial temperature options
  • Low‑power, high‑reliability for field deployment

Rich I/O & Distributed Expansion

  • 2× 10/100M Ethernet (BL233) / 3× 100M (BL233A)
  • 2× USB 2.0, optional HDMI 2.0a (1080p@60fps)
  • Mini PCIe for Wi-Fi/4G/5G, SIM slot, antenna interface
  • Supports up to 32 N‑series I/O modules (DI/DO, AI/AO, RTD, TC, PWM)
  • 2× RS485 (default) or 1× RS485 + 1× CAN2.0B (X91 option)

Intelligent Software Ecosystem

  • Ubuntu 20.04 / EdgePLC‑OS (Linux 5.4 + RT patch)
  • OpenPLC & NexPLC (IEC 61131‑3) — CODESYS not supported
  • IGH EtherCAT master, Node‑RED, Docker & K3s
  • Python/C++/Qt development, Grafana / FUXA / Ignition
  • BLRAT remote access, QuickConfig, BLIoTLink

Industrial‑grade Reliability

  • ESD level 3, EFT level 3, Surge level 3 (IEC 61000‑4)
  • Wide temperature: -20°C ~ +85°C (industrial SKU)
  • DIN35 rail mount, IP30 protection, aluminum alloy
  • Independent hardware watchdog, reverse polarity protection
  • Vibration & free fall tested (GB/T 2423)

Key Specifications Snapshot

Performance metrics at a glance

0
MHz
CPU Frequency (A7)
0
+
Max I/O Modules
0
GB
eMMC Storage (max)
0
GB
DDR3 RAM (max)

Software Version Options

Choose the runtime that fits your control strategy

Lite Edition
OpenPLC
  • Ubuntu 20.04 + OpenPLC runtime
  • IEC 61131-3 (ST, LD, FBD, IL, SFC)
  • Lightweight & fully open source
  • Ideal for simple logic & sequential control
  • Modbus TCP/RTU, MQTT support
Standard Edition
NexPLC
  • NexPLC integrated platform (IEC 61131-3)
  • Cloud‑edge collaboration & remote OTA
  • Built‑in BLIoTLink protocol conversion
  • Node‑RED, QuickConfig, BLRAT
  • YOLO / OpenCV ready (optional AI toolkit)
Note: BL233 series does NOT support CODESYS runtime. For CODESYS-based motion control, please refer to BL246 series.

Typical Applications

From factory automation to energy management

Smart Manufacturing

PLC logic, EtherCAT motion, MES connectivity

Energy Storage (EMS/BMS)

Battery monitoring, predictive maintenance, data logging

PV & Inverter Control

Power optimization, anomaly detection, remote management

Edge AIoT Gateway

Protocol conversion, local inference, MQTT to cloud

Rail Transit

Signal control, passenger counting, condition monitoring

Intelligent Building

HVAC, lighting, access control integration

Quality & Reliability

Certified for harsh industrial environments

EMC Compliance

  • GB/T 9254 / CISPR 32 Class A
  • ESD level 3 (±6kV contact, ±8kV air)
  • EFT level 3 (power 2kV, signal 1kV)
  • Surge level 3 (2kV diff, 4kV common)

Environmental Tests

  • -20°C ~ +85°C operation (industrial grade)
  • Damp heat 40°C / 85% RH for 48h
  • Sinusoidal vibration 5-500Hz, 2g
  • Free fall 0.8m (packaged)
  • IP30 protection, DIN35 rail

Software & Support

  • Preinstalled BLIoTLink, BLRAT, QuickConfig
  • Ubuntu & kernel source (Linux 5.4 + RT)
  • Docker & K3s ready, SDK, demo programs
  • Long‑term maintenance & professional support

Deploy Edge Intelligence with BL233

EdgePLC BL233 combines robust real‑time control, modular I/O expansion, and a rich open‑source ecosystem. From simple logic to EtherCAT motion and edge AI inference, accelerate your industrial digital transformation.

Configuration Tool Contact Technical Support

EdgePLC BL233 Configuration Tool

Industrial Edge Controller · N‑Series I/O up to 32 modules

1
Main Unit
2
SOM Board
3
Serial Board
4
N‑Series I/O
5
Wireless+Software

Select Base Unit

Ethernet ports & HDMI options (All models support 32 N‑Series I/O)

BL233

2x 100M Ethernet, no HDMI, rugged industrial design

Ethernet:2 x 100M
USB:2 x USB 2.0
HDMI:No
Max N‑boards:32

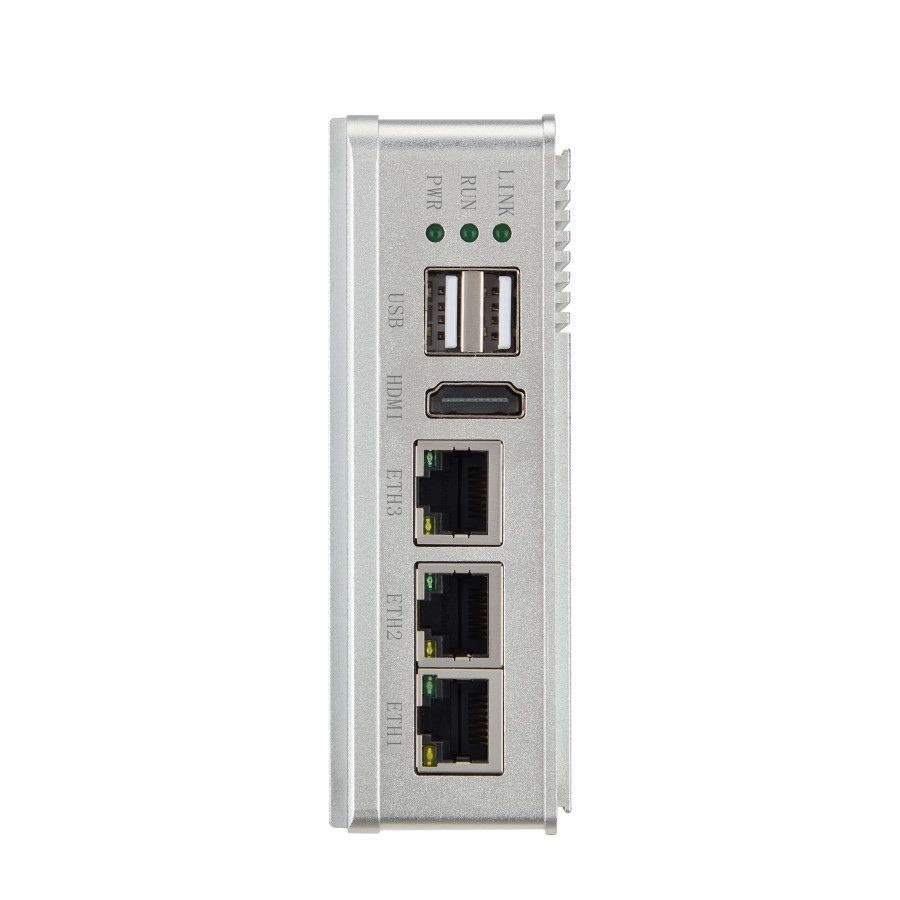

BL233A

3x 100M Ethernet, HDMI 1.4/2.0 support, extended connectivity

Ethernet:3 x 100M
USB:2 x USB 2.0
HDMI:1 x up to 4K
Max N‑boards:32

Select SOM Module

RAM / eMMC / temperature grade (T113-i dual Cortex‑A7 + RISC‑V)

Serial Expansion Board

On‑board serial interface (default X902 with 2xRS485)

N‑Series I/O Modules

Up to 32 modules – configure DI/DO/AI/AO/RTD/TC

I/O Requirements Assistant

Enter your I/O counts & signal types – we'll recommend suitable N‑Series boards.

Wireless & Software

4G/5G/Wi‑Fi / PLC runtime (Ubuntu based)

Wireless Module

None
Wired only
Wi‑Fi
2.4G 802.11 b/g/n
4G/LTE
Cat-1/4G global bands
5G NR
RedCap / full 5G

Software Version

Lite
Ubuntu + OpenPLC
STA
NexPLC standard
Pro
CODESYS professional

Configuration Complete

Your custom BL233 model:
  • Edge PLC
  • Industrial Edge Controller
  • EdgePLC

Want to get more information?

REQUEST A QUOTE
IIoT Gateway Manufacturer

CONTACT US

If you have any queries, get in touch today! Don't hesitate. We try to take the extra step for our customer satisfaction.
FirstName*
LastName*
Email*
Message*
Code*
Verification Code
Home
AIoT&Industrial AI
Industrial IoT
Industrial Automation
Smart Energy
Smart Building
Smart Factory
Contact
2F, A2 Building, Fuhai Information Port, Fuyong, Baoan, Shenzhen, China
bl31@bliiot.com
0086-755-29451836
Become a Partner
Become a BEILAI authorized distributor. We provide stable product supply, competitive pricing, and professional assistance to help you succeed in your local market.
Contact Us
Follow Us
Privacy Policy
Copyright © 2005-2025 Beilai Tech. Co., Ltd. All Rights Reserved.
Leave a message
FirstName*
LastName*
Email*
Message*
Code*
Verification Code
We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.
