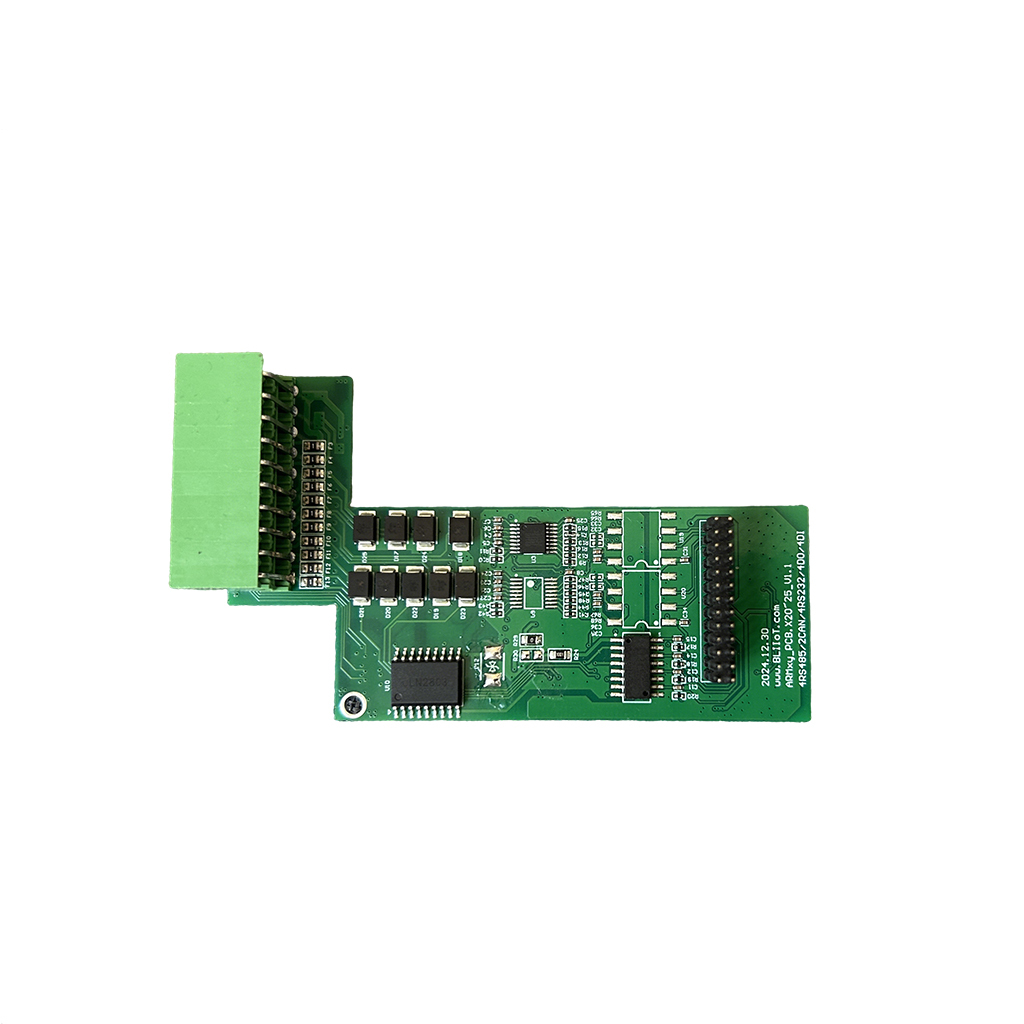

16DI+8DO+1CANFD+3RS485 Module Compatible with the EA Series

No.EA Series Y80
The Y80 is a Y-series IO expansion board for the EA series industrial AI edge computers, providing isolated digital I/O and industrial fieldbus connectivity to enable reliable edge control, monitoring, and automation applications.
Request Pricing
Description

Y80 is a Y-series IO expansion board for the EA series industrial AI edge computers, providing 16DI, 8DO, 1×CAN FD, and 3×RS485 interfaces with electrical isolation for reliable edge control, monitoring, and automation applications.

Technical Specifications

Power

  • Operating Voltage5V
  • Power ConsumptionTypical 2W

DI Input

  • Channels16
  • Trigger ModeLow-level trigger, high-level trigger (optional)
  • Dry/Wet ContactOptional
  • Logic 1+9 to +12 VDC
  • Logic 0-3 to +5 VDC
  • Isolation Protection2 KVrms

DO Output

  • Channels8
  • Output TypeNPN/PNP (optional)
  • Trigger ModeLow-level trigger, high-level trigger (optional)
  • Logic 1+9 to +12 VDC
  • Logic 0-3 to +5 VDC
  • Isolation Protection2 KVrms

CAN FD

  • Channels1
  • Transmission ModeCAN FD bus
  • Max Baud RateArbitration: 1000 Kbps; Data: 5000 Kbps
  • Termination Resistor120 Ω
  • Isolation Protection2 KVrms
  • Cable RequirementShielded twisted pair

RS485

  • Channels3 × RS485
  • Max Baud Rate10 Mbps
  • Data Bits5, 6, 7, 8 bit (adjustable)
  • Stop Bits1, 2 bit (adjustable)
  • ParityOdd, Even, None (adjustable)
  • Flow ControlNot supported
  • Termination Resistor120 Ω
  • Distance & Baud Rate200 m (baud rate ≤ 115200 bps)
  • Multi-dropSelf-developed
  • Communication ModeUnidirectional half-duplex / simplex
  • Isolation Protection2 KVrms
  • Cable RequirementShielded twisted pair

Certifications (EMC)

  • ESDIEC 61000-4-2 Level 3
  • EFTIEC 61000-4-4 Level 3
  • SurgeIEC 61000-4-5 Level 3
Model Selection
No. Model Channel Signal Type
1 Y80 28 16DI+8DO+1 CANFD+3 RS485
